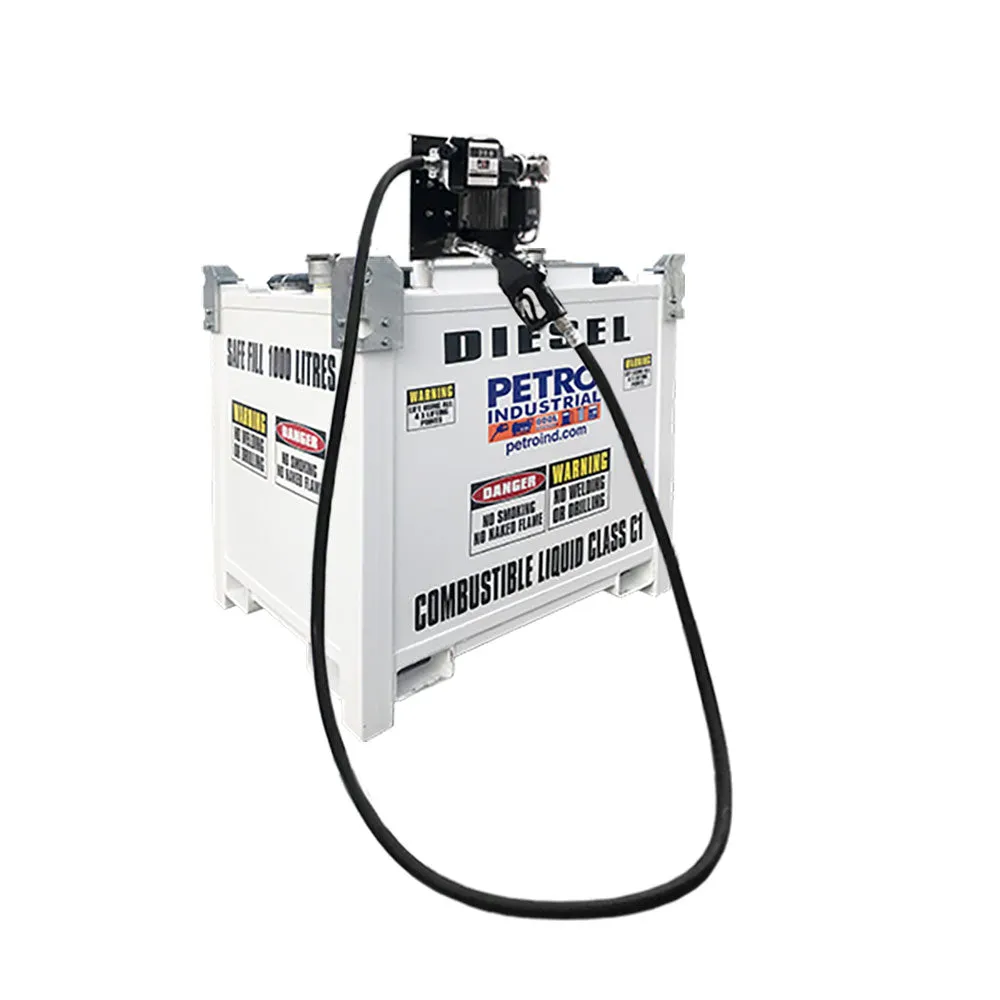

1000L Safe Fill PC1.1 Cube Self Bunded Tank with PIUSI ST Pump Kit

With low flow 50lpm PIUSI ST Pumpkit - comes with pre-pump y strainer, 230V PIUSI Panther 56 pump, K33 mechanical meter, 4m hose and A60 auto shut-off Nozzle.

Fully installed and wet tested, plug and play on-site. Pump supplied with standard 3m power lead and 3 PIN Australian.

**Options for 12VDC or 24VDC pumpkits / Power generator hose kits

Suitable for the storage and dispensing of Diesel, Biodiesel, Kerosene, Lubricants, Petrol and Waste Oil.

The PC Cube is a market-leading 110% self bunded tank, with versatile under-hatch connections and an intelligent design certified for lifting when full (Up to PC6.6).

FEATURES:

• Unique tank in tank design approved to UL142 / ULCS601 / AS1940, AS1692, AS1170, AS4100, AS1554.1 / BS799 / PPG2.

• Certified Crane Lifting Points (Up to and including PC6.6)
• Removable manway for ease of maintenance.
• The outer tank will hold 110% of the inner tank’s capacity.
• UN31A/Y approved for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III. (PC0.66  - PC2.25)
• Lockable hatch lid with access for hoses, under hatch sockets and suction spears can operate with the hatch closed.
• Additional 50mm (2”) hose entry and exit sockets on top of tank.
• Secure under-hatch generator hose suction and return points, to accommodate up to 3 generators.
• 4 x way forklift pockets.
• Incremental dipstick.
• Stackable - 3-high empty and 2-high when full.
• Supplied with all required statutory decals.
• Movable when full (Up to and including PC6.6)

COMES WITH:

• 1 x 25mm (1”) Suction Spear
• 2 x 13mm (1/2”) Suction Spear
• 3 x 40mm (1 1/2”) Return Point
• 1 x Spare 80mm (3”) Socket
• 4 x Spare 50mm (2”) Socket Top of Tank
• 50mm (2”) Fill Point - Splash Fill Only
• Incremented Dip Stick (Select Models)
• Statutory Signage
• 4 Way Forklift Pockets
• Certified Lift Full Crane Lugs on Each Corner
• Finish Painted PETRO White Marine Specification
• Optional extra to pre-fit 1 x 50mm (2”) Overfill Valve

PRODUCT RANGE:

View the full range of  manufactured by PETRO Industrial today!

 team of bulk fuel storage and dispensing specialists for more information today!
